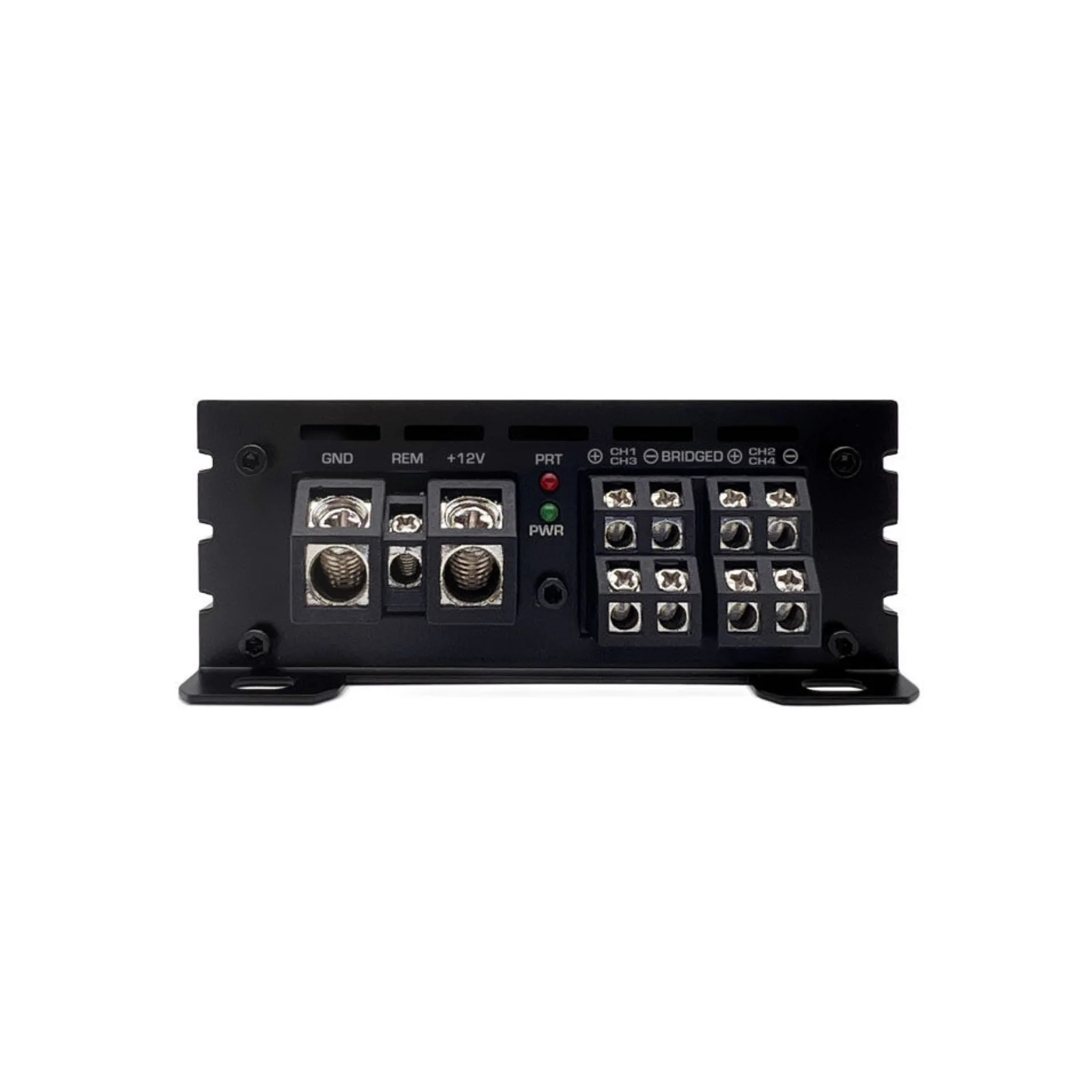

Zapco HB 84D Amp 4 Channel Class D Bridgeable Amplifier 4x75w RMS
HB 84D
4-Ch. Class D Amplifier
4-Channel, Full Range, Class D, RCA and Speaker Level inputs, Variable input gain control and Variable electronic crossover
- Power @ 4Ω: 4 x 75 watts RMS
- THD @ Rated Power < 0.5%THD
- Power @ 2Ω: 4 x 120 watts RMS
- Power Bridged @ 4Ω: 2 x 240 W RMS
- Signal to Noise Ratio > 95dB
- THD + Noise < 0.1%
- Frequency Response 15Hz to 30KHz ±1dB
- Input Sensitivity .25v to 6v (Low)
- Dimensions (mm): 160 (L) x 115 (W) x 45 (H)
More Images


Zapco HB 84D Amp 4 Channel Class D Bridgeable Amplifier 4x75w RMS
HB 84D
4-Ch. Class D Amplifier
4-Channel, Full Range, Class D, RCA and Speaker Level inputs, Variable input gain control and Variable electronic crossover
- Power @ 4Ω: 4 x 75 watts RMS
- THD @ Rated Power < 0.5%THD
- Power @ 2Ω: 4 x 120 watts RMS
- Power Bridged @ 4Ω: 2 x 240 W RMS
- Signal to Noise Ratio > 95dB
- THD + Noise < 0.1%
- Frequency Response 15Hz to 30KHz ±1dB
- Input Sensitivity .25v to 6v (Low)
- Dimensions (mm): 160 (L) x 115 (W) x 45 (H)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HB 84D
4-Ch. Class D Amplifier
4-Channel, Full Range, Class D, RCA and Speaker Level inputs, Variable input gain control and Variable electronic crossover
- Power @ 4Ω: 4 x 75 watts RMS
- THD @ Rated Power < 0.5%THD
- Power @ 2Ω: 4 x 120 watts RMS
- Power Bridged @ 4Ω: 2 x 240 W RMS
- Signal to Noise Ratio > 95dB
- THD + Noise < 0.1%
- Frequency Response 15Hz to 30KHz ±1dB
- Input Sensitivity .25v to 6v (Low)
- Dimensions (mm): 160 (L) x 115 (W) x 45 (H)
