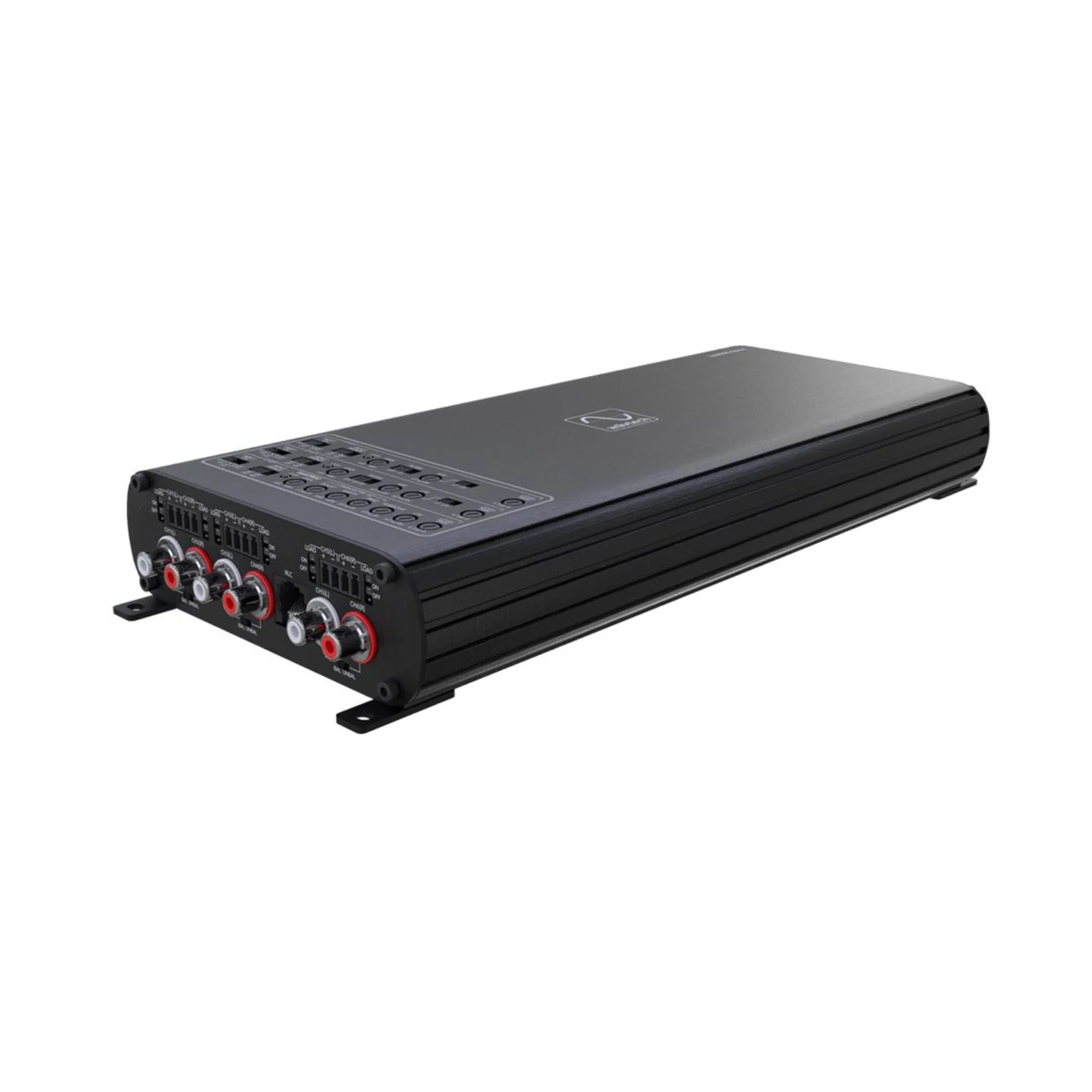

Wavtech Link1000.5 Plus 5 Channel Amplifier with OEM Integration
Link1000.5 Plus 5 Channel Amplifier with OEM Integration
Experience pristine sound with the Wavtech 1000W 5-Channel Amplifier. Its built-in summing and adaptive loading technology offer seamless OEM integration. Enjoy powerful audio with adjustable bass control & thermal management.
The link1000.5plus is the perfect complete system amplifier. Like all WÄvtech amplifiers, the link1000.5plus has built-in adaptive loading, active thermal management and can accept up to 40V of input.
Key Features
- 1000 Watt 5-Channel Amplifier
Main Channels
- 75 watts x 4 @ 4 ohms
- 100 watts x 4 @ 2 ohms
- 200 watts x 2 @ 4 ohms (bridged)
Subwoofer Channel
- 300 watts x 1 @ 4 ohms
- 500 watts x 1 @ 2 ohms
- Small Footprint Only 11.9āx5.5āx1.65ā

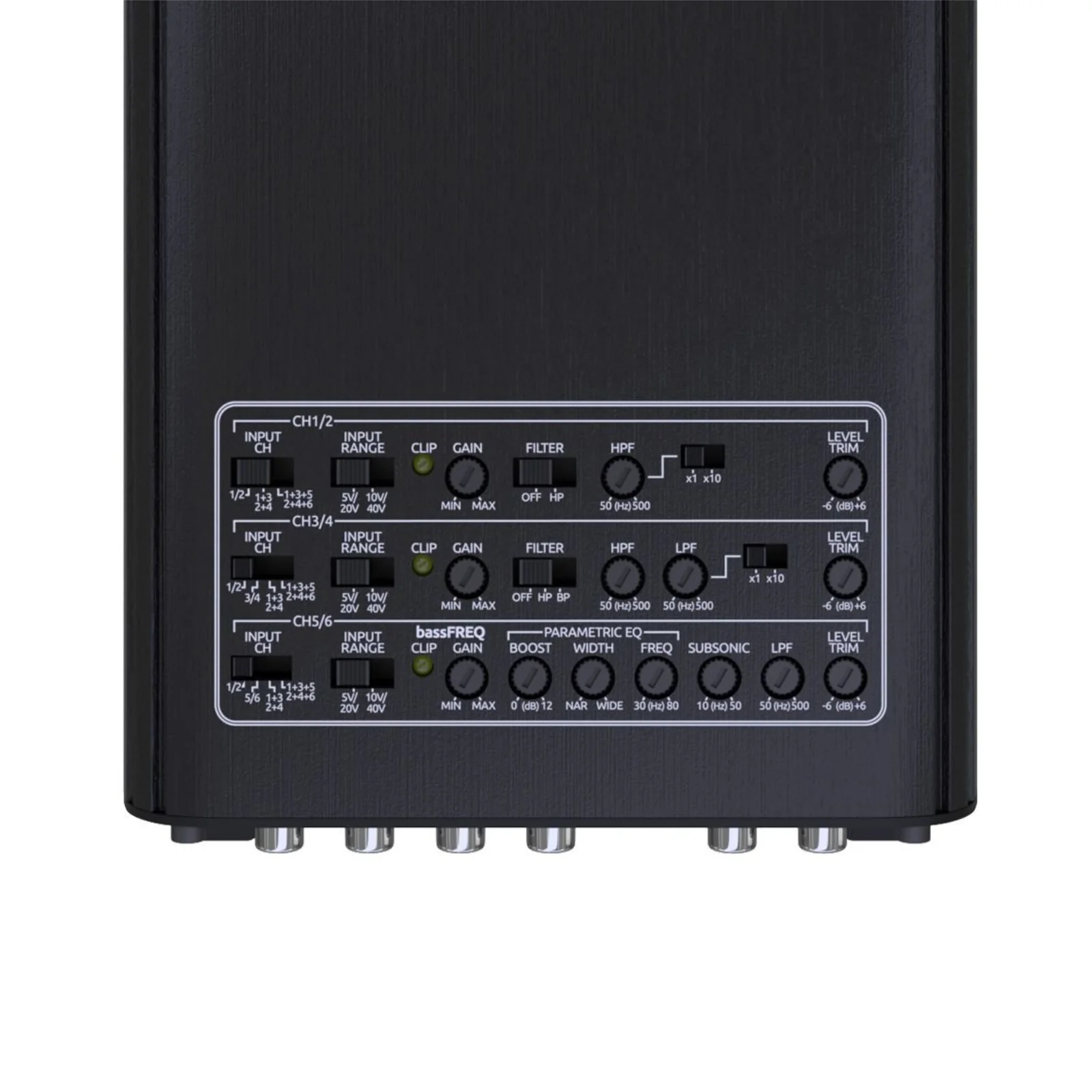

- Variable HP Crossover (-12dB/oct) with 1x/10x CH1/2
- Variable HP/BP/LP Crossover (-12dB/oct) CH3/4
- Variable Low-Pass Crossover (-24dB/oct) CH5
- Variable Subsonic Filter (-24dB/oct) CH5
- Adjustable Parametric EQ CH5
- Remote Level Control (RLC) w/Optional linkRC
- Built-In Summing w/Level Trim Adjsutment
- Start/Stop Sytem Compatiable (stable down to 7 volts)
- Differential Balanced Inputs
- Variable Gain Adjustment w/Clip LED
- Auto Turn-On via DC-Offset or Audio Signal Detect
- Adaptive OEM Load Technology

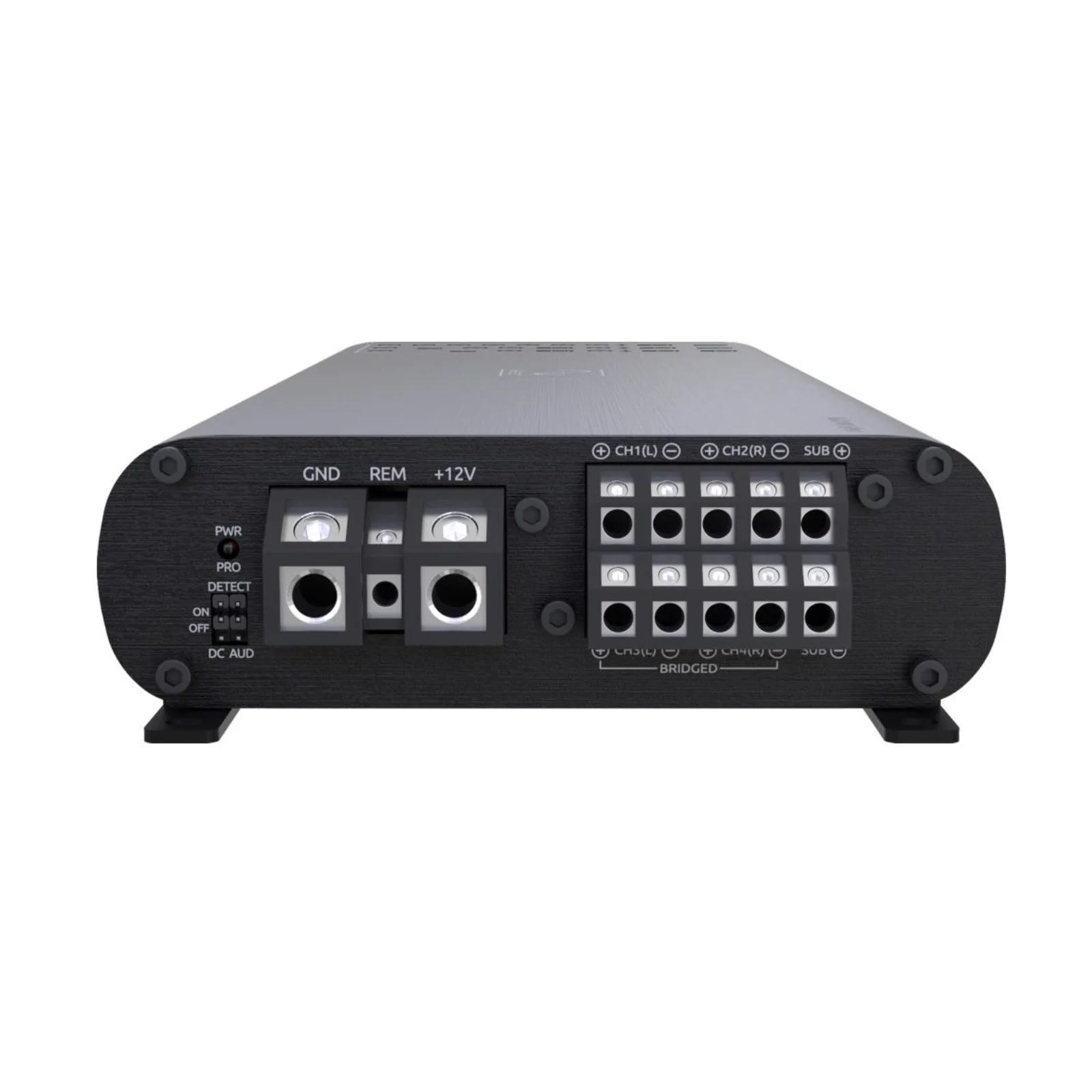

- Locking Detachable Hi-Level Speaker Terminals

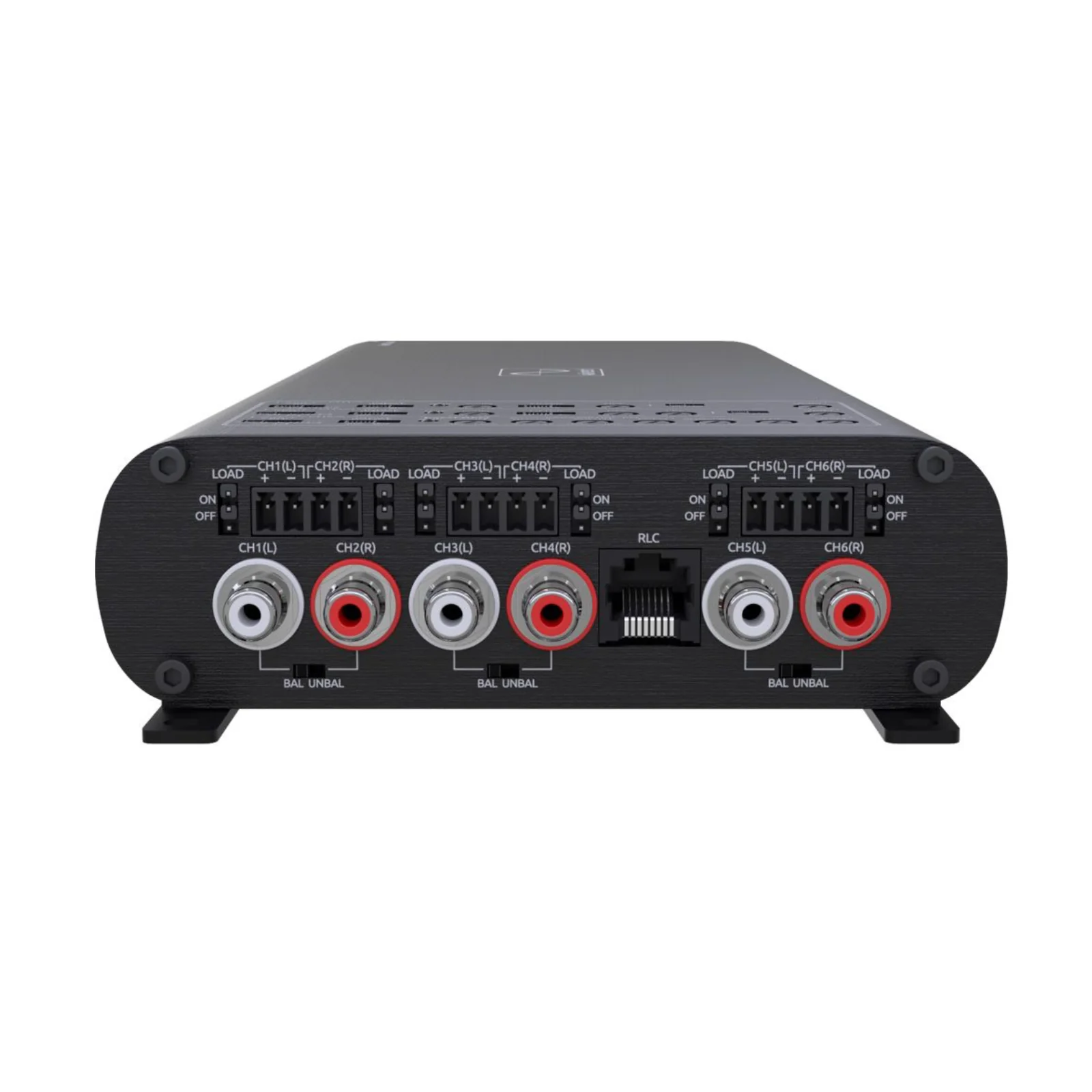

- Professional Grade Panel Mount RCAās
- Compact Aluminum Chassis w/Detachable Mounting tabs
