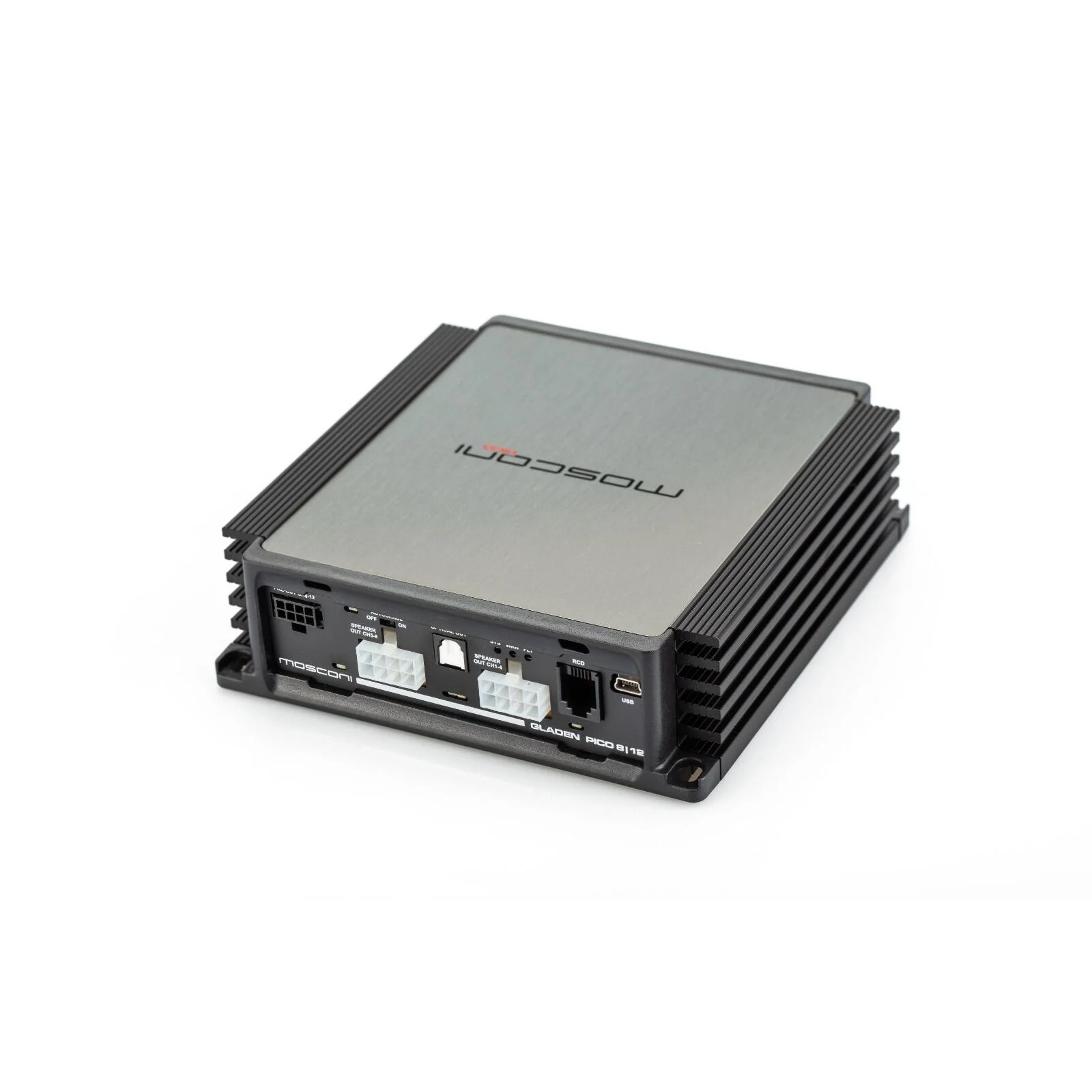

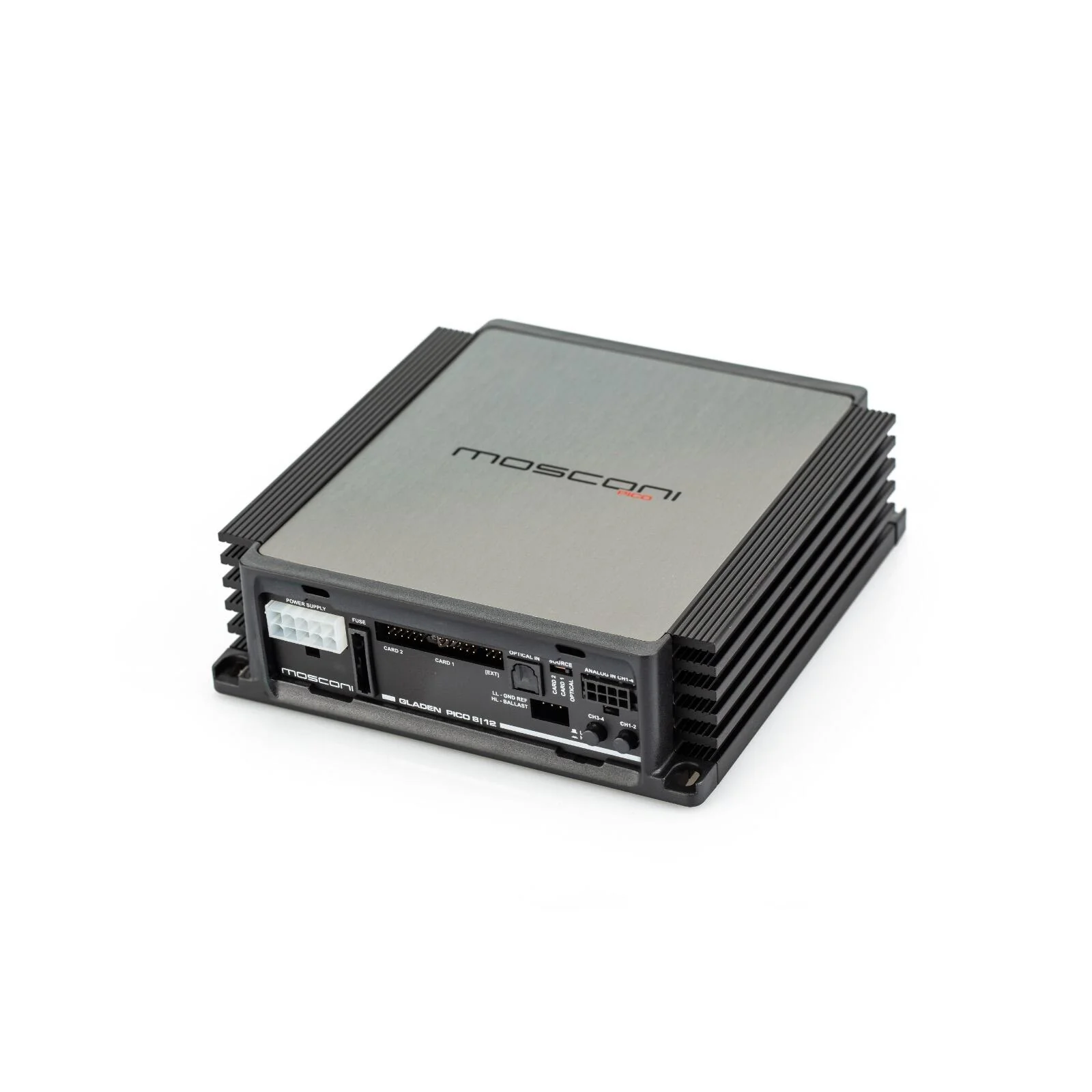

Mosconi Pico 8 | 12 DSP Amp 8 Channel Amplifier with 12 Channel DSP Up to 480w
MOSCONI PICO 8 | 12 DSP
8 Channel Amplifier Class D Technology Up to 480 Watts @ 2 Ohm
MOSCONI PICO 8|12 DSP
PERFECT OEM INTEGRATION
Powerful DSP amplifier optimized for factory radio use. Four analog inputs, flexible routing, 3 x input EQ and delay. With 8 x 50 Watts ideal for active multi-way systems and extensive installations. Ready for the future with two digital inputs (SP-Dif and BT+) and two processed line outs.
SIGNAL CONTROLLED POWER SUPPLY
In contrast to Class G/H, the power supply is only switched on when required (high levels) and regulated depending on the power demand. Benefit: The quiescent current is between 250 mA and 450 mA (depending on the speaker circuitry) -> Especially interesting for electromobility and motorhomes
TRANSDUCERLESS HIGH-SPEED PWM POWER AMPLIFIERS
High-efficiency PWM amplifiers with the fastest carrier frequency in the world today (> 2 MHz), enables HiRes audio transmission and the extremely small size. The modulation is done without DAC directly from the 96 kHz TDM signal of the DSP, thus the noise floor is close to zero and THD+N ~ 0.02 % / 1 W.
More Images
Mosconi Pico 8 | 12 DSP Amp 8 Channel Amplifier with 12 Channel DSP Up to 480w
MOSCONI PICO 8 | 12 DSP
8 Channel Amplifier Class D Technology Up to 480 Watts @ 2 Ohm
MOSCONI PICO 8|12 DSP
PERFECT OEM INTEGRATION
Powerful DSP amplifier optimized for factory radio use. Four analog inputs, flexible routing, 3 x input EQ and delay. With 8 x 50 Watts ideal for active multi-way systems and extensive installations. Ready for the future with two digital inputs (SP-Dif and BT+) and two processed line outs.
SIGNAL CONTROLLED POWER SUPPLY
In contrast to Class G/H, the power supply is only switched on when required (high levels) and regulated depending on the power demand. Benefit: The quiescent current is between 250 mA and 450 mA (depending on the speaker circuitry) -> Especially interesting for electromobility and motorhomes
TRANSDUCERLESS HIGH-SPEED PWM POWER AMPLIFIERS
High-efficiency PWM amplifiers with the fastest carrier frequency in the world today (> 2 MHz), enables HiRes audio transmission and the extremely small size. The modulation is done without DAC directly from the 96 kHz TDM signal of the DSP, thus the noise floor is close to zero and THD+N ~ 0.02 % / 1 W.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MOSCONI PICO 8 | 12 DSP
8 Channel Amplifier Class D Technology Up to 480 Watts @ 2 Ohm
MOSCONI PICO 8|12 DSP
PERFECT OEM INTEGRATION
Powerful DSP amplifier optimized for factory radio use. Four analog inputs, flexible routing, 3 x input EQ and delay. With 8 x 50 Watts ideal for active multi-way systems and extensive installations. Ready for the future with two digital inputs (SP-Dif and BT+) and two processed line outs.
SIGNAL CONTROLLED POWER SUPPLY
In contrast to Class G/H, the power supply is only switched on when required (high levels) and regulated depending on the power demand. Benefit: The quiescent current is between 250 mA and 450 mA (depending on the speaker circuitry) -> Especially interesting for electromobility and motorhomes
TRANSDUCERLESS HIGH-SPEED PWM POWER AMPLIFIERS
High-efficiency PWM amplifiers with the fastest carrier frequency in the world today (> 2 MHz), enables HiRes audio transmission and the extremely small size. The modulation is done without DAC directly from the 96 kHz TDM signal of the DSP, thus the noise floor is close to zero and THD+N ~ 0.02 % / 1 W.
