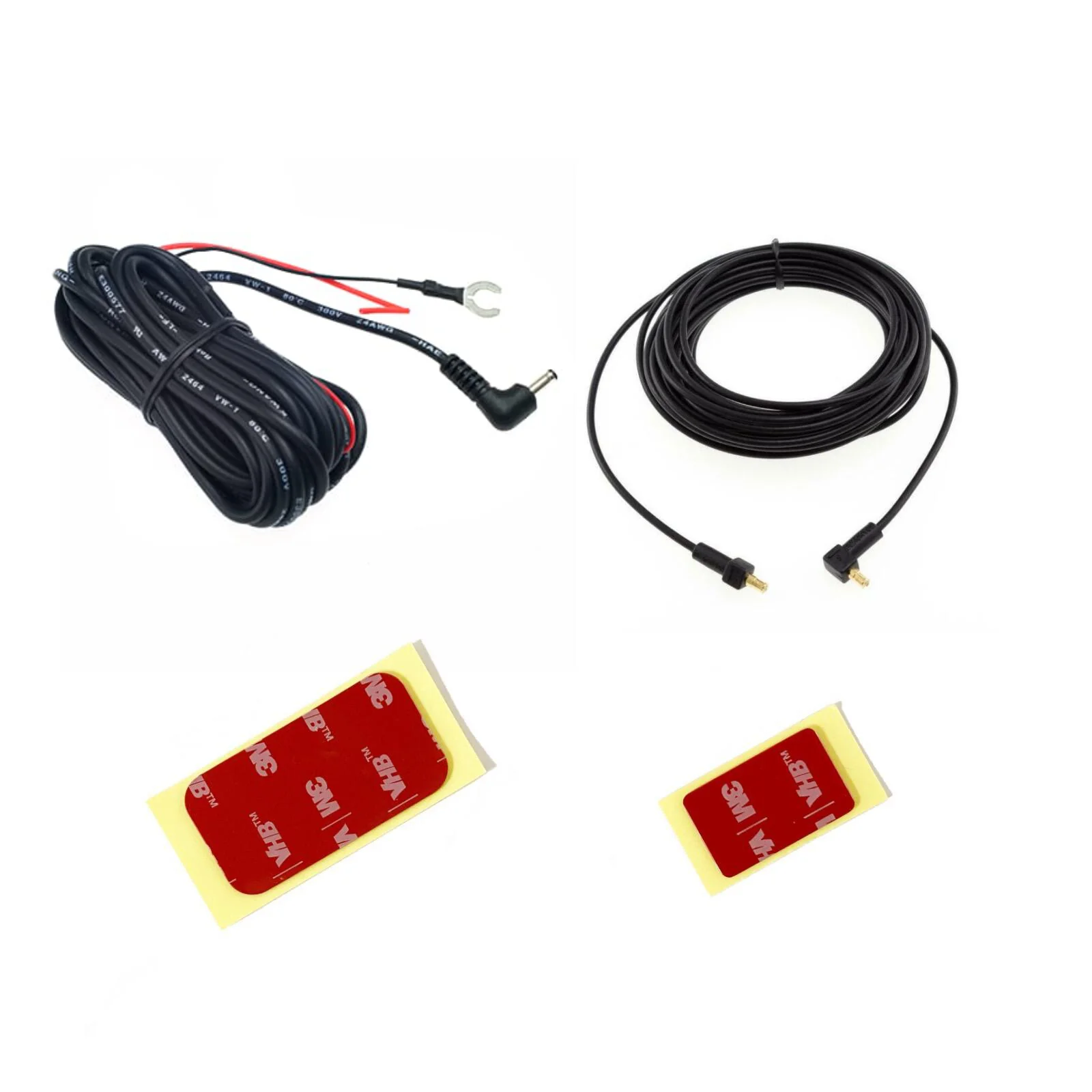

BlackVue S Series Dash Cam Hardwire Installation Kit for Front & Rear Cameras

Replacement Hardwire Installation Kit for S Series

Power Cable, Rear Camera Cable and Sticky Pads

S Series Installation Kit

Power cable to hardwire the dash camera

Rear Camera Coaxial Cable

Coaxial video cables for dual-channel BlackVue dashcams.

Front and Rear camera mounting tape

Exactly the same as the original sticky that came with your BlackVue

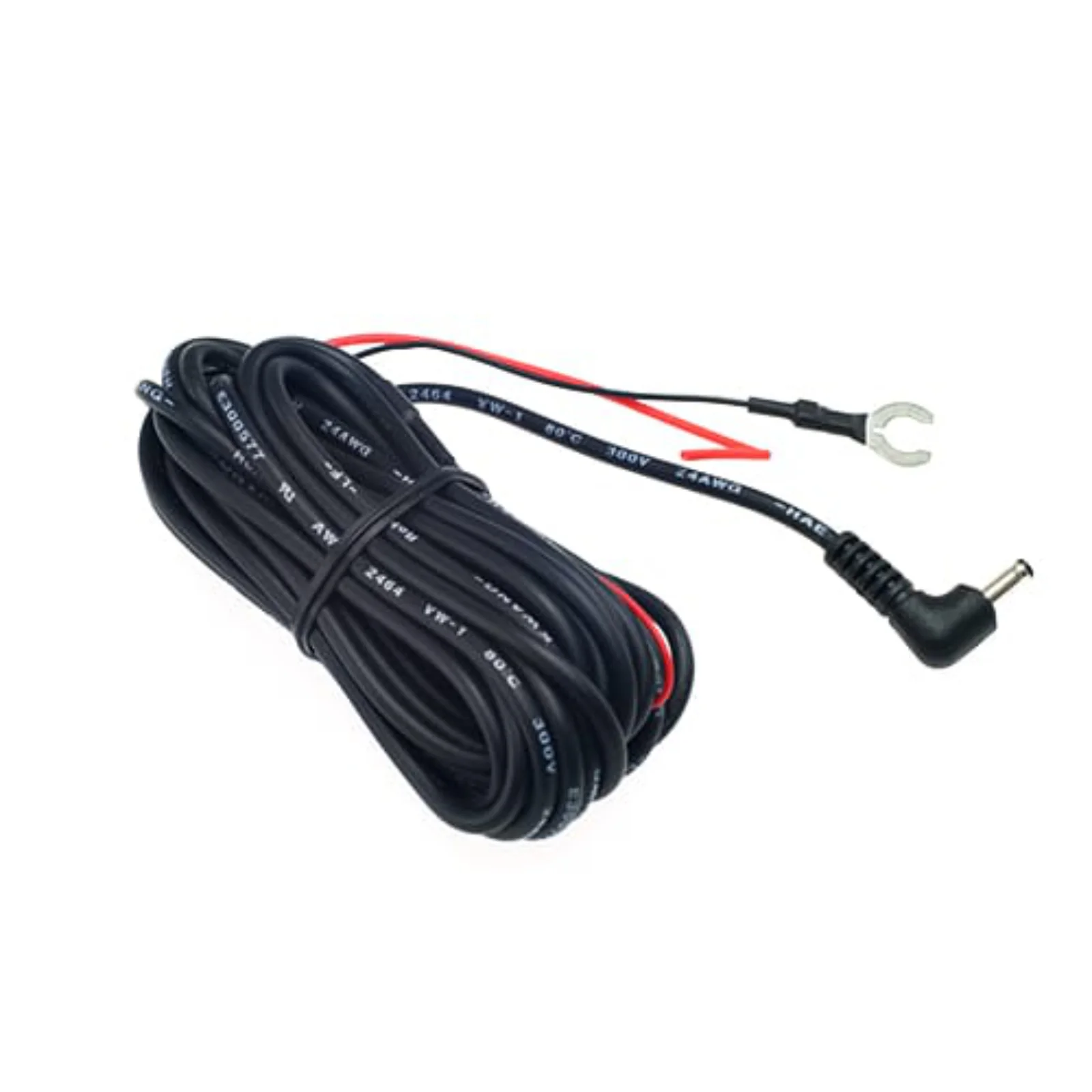

Hardwire Cable

• DC PLUG (Ø3.5 x Ø1.35)

• Length 4.5m / 14.76 ft
• OD 3.5mm
• Fuse Max. 2A

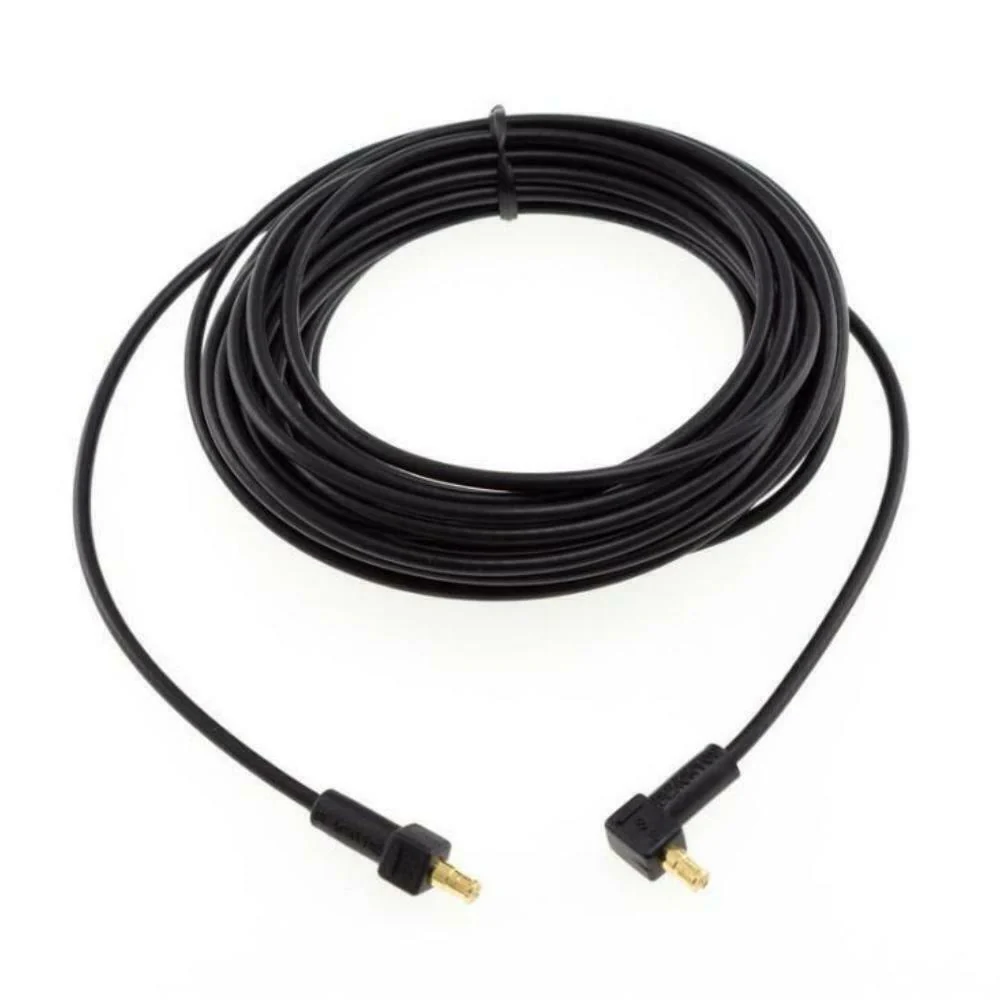

Rear Camera Cable

• Length : 6 m / 19.68 ft
• Jack Type: MCX (Right Angle) to MCX (Straight)
• Cable Type: RG-174
• Weight: 0.194 lb / 88 g

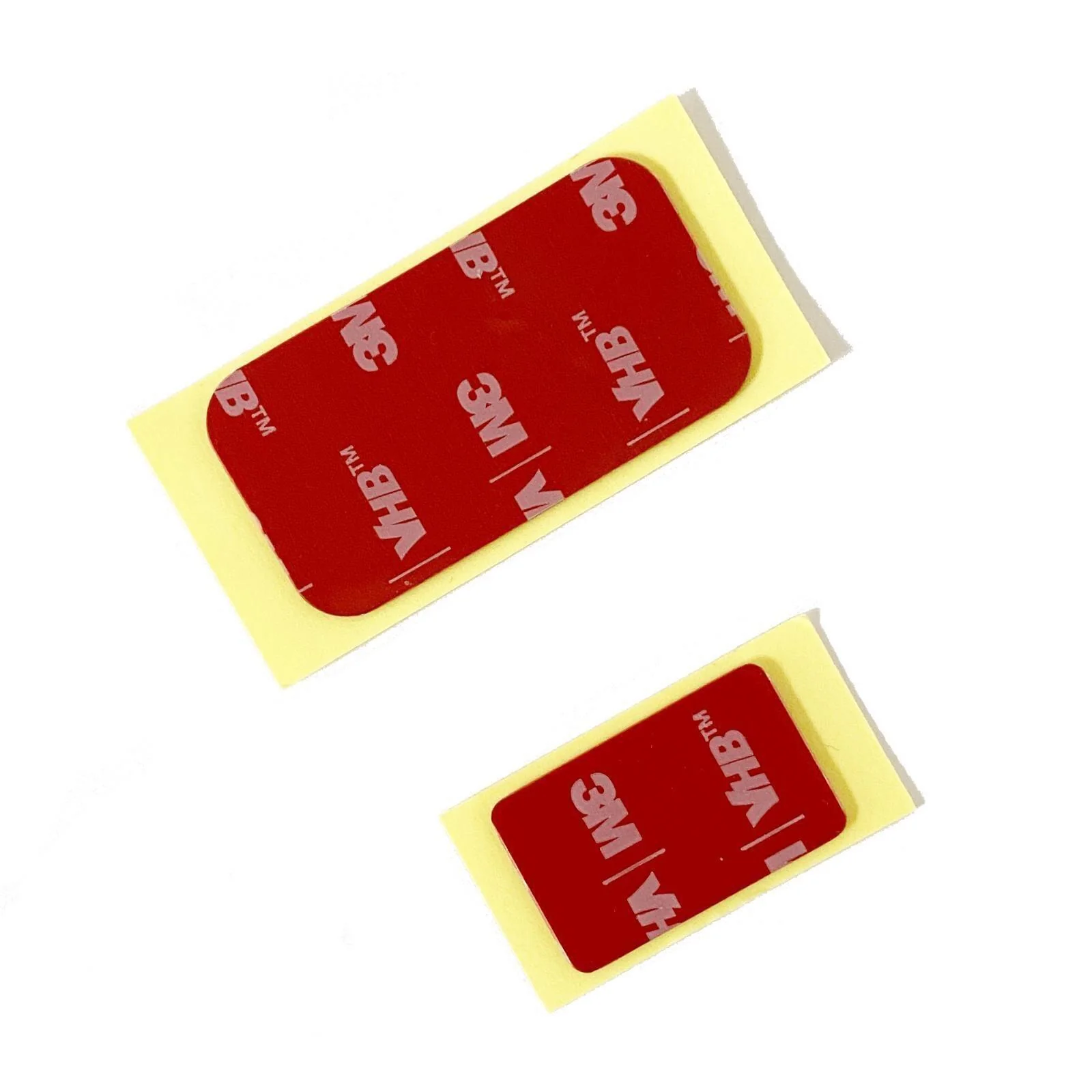

Stick Pads

Dimension: 1.92 x 1.02 in. / 48.8 x 26 mm

Compatible Models

• DR650S-1CH - 2CH
• DR650S-2CH-IR
• DR650GW-2CH-Truck
• DR650S-2CH-Truck
• DR750S-1CH - 2CH
• DR750S-2CH-IR
• DR750S-2CH-Truck
• DR900S-1CH - 2CH
• DR900S-2CH-IR
• DR750-2CH-LTE
• DR750-2CH-IR-LTE
