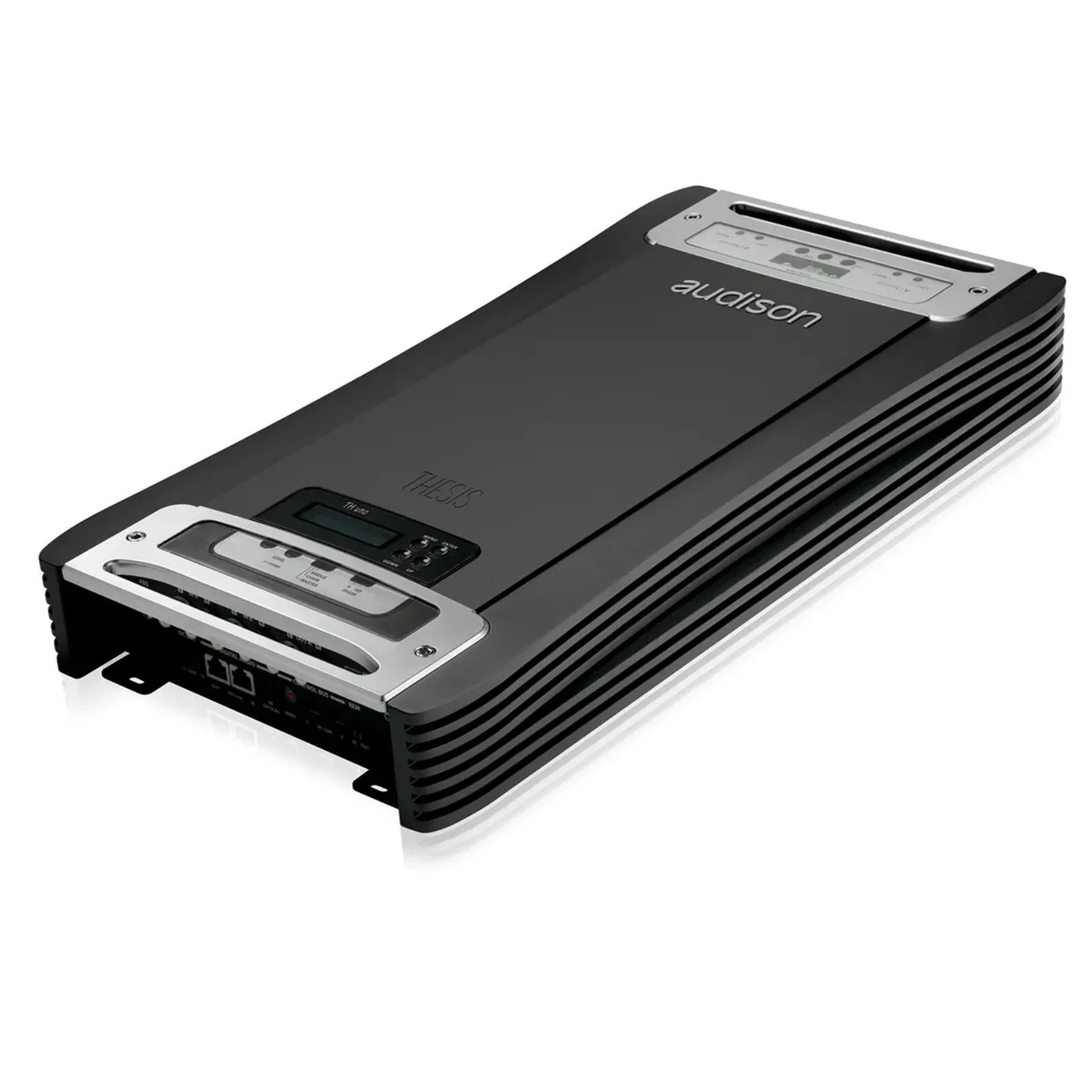

Audison Thesis TH Uno Amplifier Class A 1 Channel Dual Mono Amp 2300w RMS
TH uno
Amplifier | 1500 W total power | 1 x 2300 W @ 1ohm | A-class
THESIS: BEYOND THE ABSOLUTE
Thesis amplifiers are born with the know-how and experience achieved with the HV venti, improved by the innovation of digital technology. The result is a perfect combination between the highest level of analog technology and the advanced features of the digital technology in one unique product.
The precious synergy with Full DA HD technology takes the in-car listening experience to a new level of excellence; the synthesis of a unique know-how employed in mobile audio reproduction.TH uno is a single channel (mono) amplifier used to achieve maximum performance under any load; capable of delivering up to 2300 W into 1 ohm and 200 W in the audiophile A Class mode. Specifically designed to drive systems and subwoofers with self-assured mastery.
- Complementary differential circuitry with current mirror.
- Cascode A Class driver with inverted complementary triplet power
- stages.
- Integrated 24-bit / 192 kHz Hi-End DA converters.
- Compatibility with Audison Full DA HD technology and Hi-Res audio
- files listening certification.
- SPDIF and AD Link optical digital inputs that manage up to 8 digital
- channels on RJ-45 connector.
- Dual Mono Construction featuring four power supplies in Synchro-PWM
- configuration.
- Sensitivity control featuring 256 steps resistive switching for a
- resolution of 120 dB.
- Energy Saving, Hi-Current, Hi-AB Class, A Class presets selectable in
- real time.
- Digital control via integrated settings panel, DRC and PC Software.
- High quality crossover module supplied.
- Chassis extruded from solid aluminium and built using CNC machines.
FULL DA HD
Pure digital signal transfer with a resolution up to 24 bit / 96 kHz
DIGITAL INPUTS AND OUTPUTS
Innovation is at the heart of the state-of-the-art digital decoding section. The S/PDIF optical input allows direct connection to digital sources with the ability to re-launch the digital signal to other Thesis amplifiers through the AD Link (Audison DigitalLink) system. Each amplifier features 192 kHz/24 bit PCM D/A conversion through a very high quality converter.
BIAS CONTROL
Provides the selection of four possible presets: Energy Saving, Hi-Current, Hi-AB Class and full A Class operation.
REMOVABLE CROSSOVER
Inherited from the HV venti and making the most of TH’s extreme versatility, the complete crossover circuit of the TH amplifier is removable; a high-end sound quality solution.

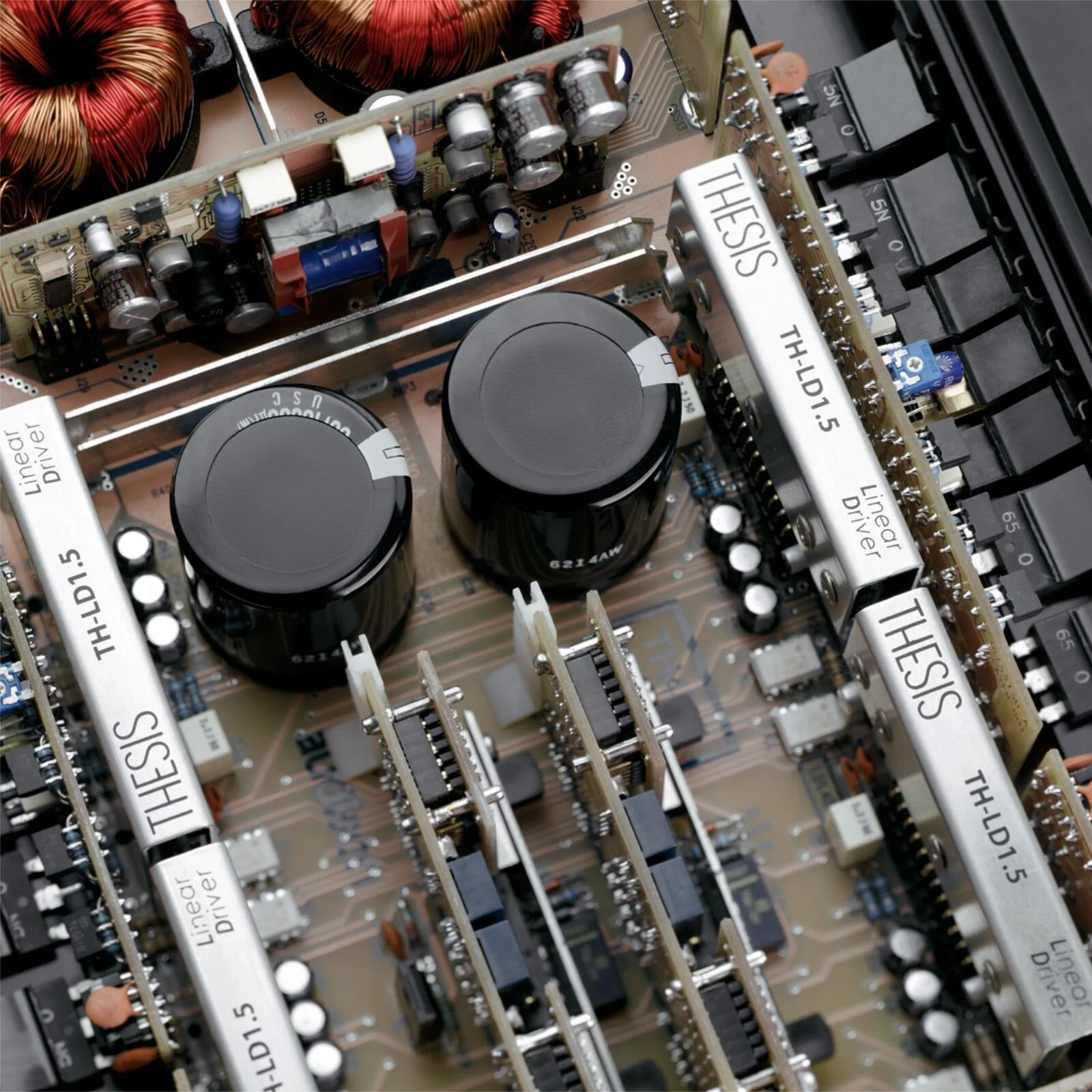

DUAL MONO CONSTRUCTION
Four Synchro-PWM power supplies allow for a very fast transient current response and to create a Dual Mono configuration.
