Audison APBMW ReAMP 1 Plug & Play Harness Replace OEM BMW 676 HiFi Amplifier
APBMW REAMP 1
Accessories | Plug&Play harness to replace the OEM BMW amplifier
This Plug & amp;Play harness provides the ability to replace the OEM BMW amplifier with an Audison AP bit on BMW vehicles equipped with the optional Hi-Fi sound system.The OEM seven-channel analog amplifier is connected via a forty-two pin multipolar connector.
The APBMW ReAMP 1 harness interfaces with BMW 676 HiFi systems using the unified analog external amplifier found in late E60, all E9x, E8x, all F3x/8x, up until iDrive 7 and the RAM.
The harness eliminates the 676 HiFi amplifier, so it can be removed from the vehicle.

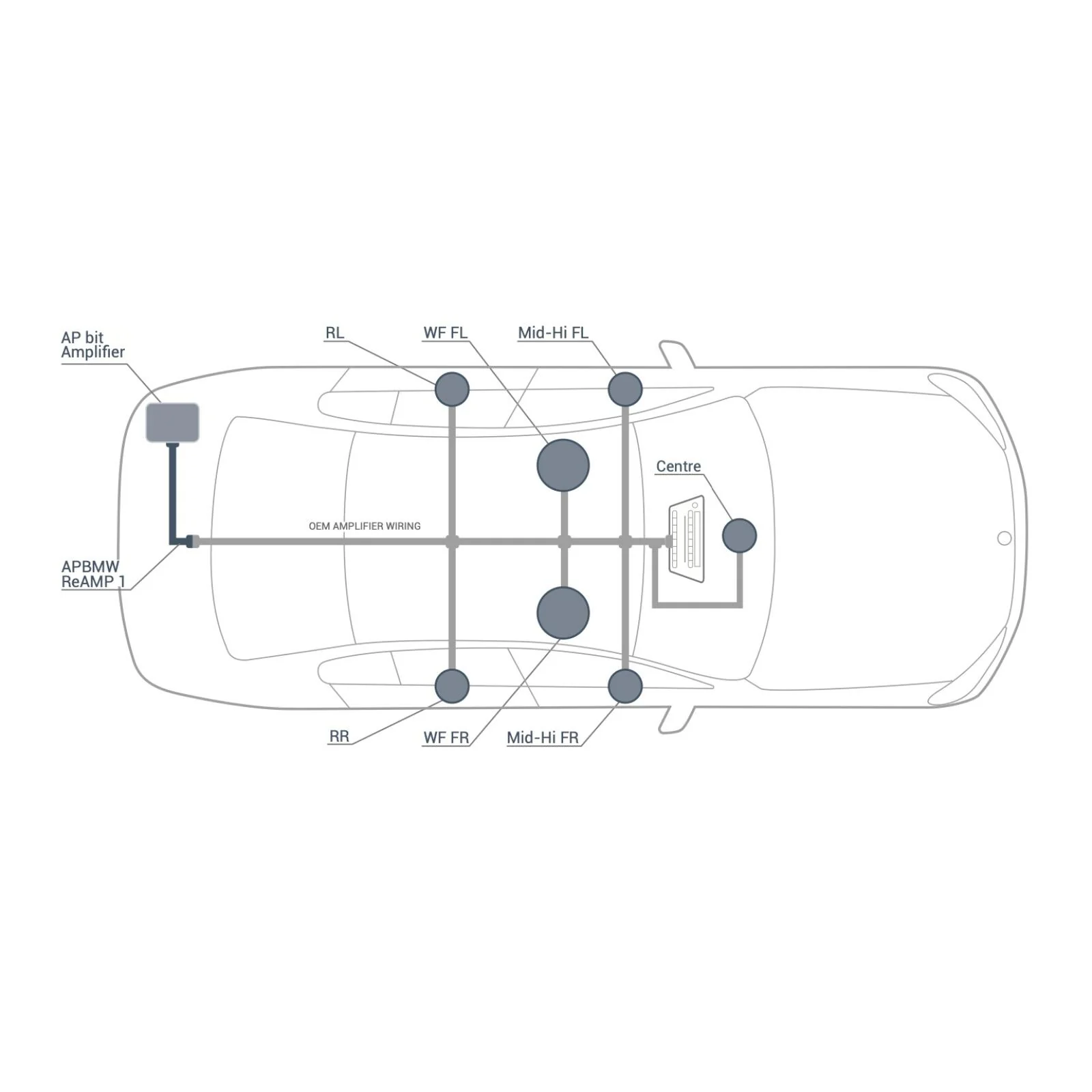

It also brings out front and rear preamp signals, front, rear, under seat woofer, and centre speaker leads (if present), as well as B (+), GND, and 12V Remote Turn On leads.
Most 676 HiFi systems use a 4V analog preamp signal, but some use lower voltages.
More Images
Audison APBMW ReAMP 1 Plug & Play Harness Replace OEM BMW 676 HiFi Amplifier
APBMW REAMP 1
Accessories | Plug&Play harness to replace the OEM BMW amplifier
This Plug & amp;Play harness provides the ability to replace the OEM BMW amplifier with an Audison AP bit on BMW vehicles equipped with the optional Hi-Fi sound system.The OEM seven-channel analog amplifier is connected via a forty-two pin multipolar connector.
The APBMW ReAMP 1 harness interfaces with BMW 676 HiFi systems using the unified analog external amplifier found in late E60, all E9x, E8x, all F3x/8x, up until iDrive 7 and the RAM.
The harness eliminates the 676 HiFi amplifier, so it can be removed from the vehicle.
It also brings out front and rear preamp signals, front, rear, under seat woofer, and centre speaker leads (if present), as well as B (+), GND, and 12V Remote Turn On leads.
Most 676 HiFi systems use a 4V analog preamp signal, but some use lower voltages.
