Audison AF Link Cable for Forza AF bit Outputs to Pre Inputs for AF M Amplifiers
AF LINK CABLE
Accessories | Link Cable for Audison AF Forza Amplifiers
AF LINK accessory cable can be connected to have 6 additional channels configurable on the bit Drive software.

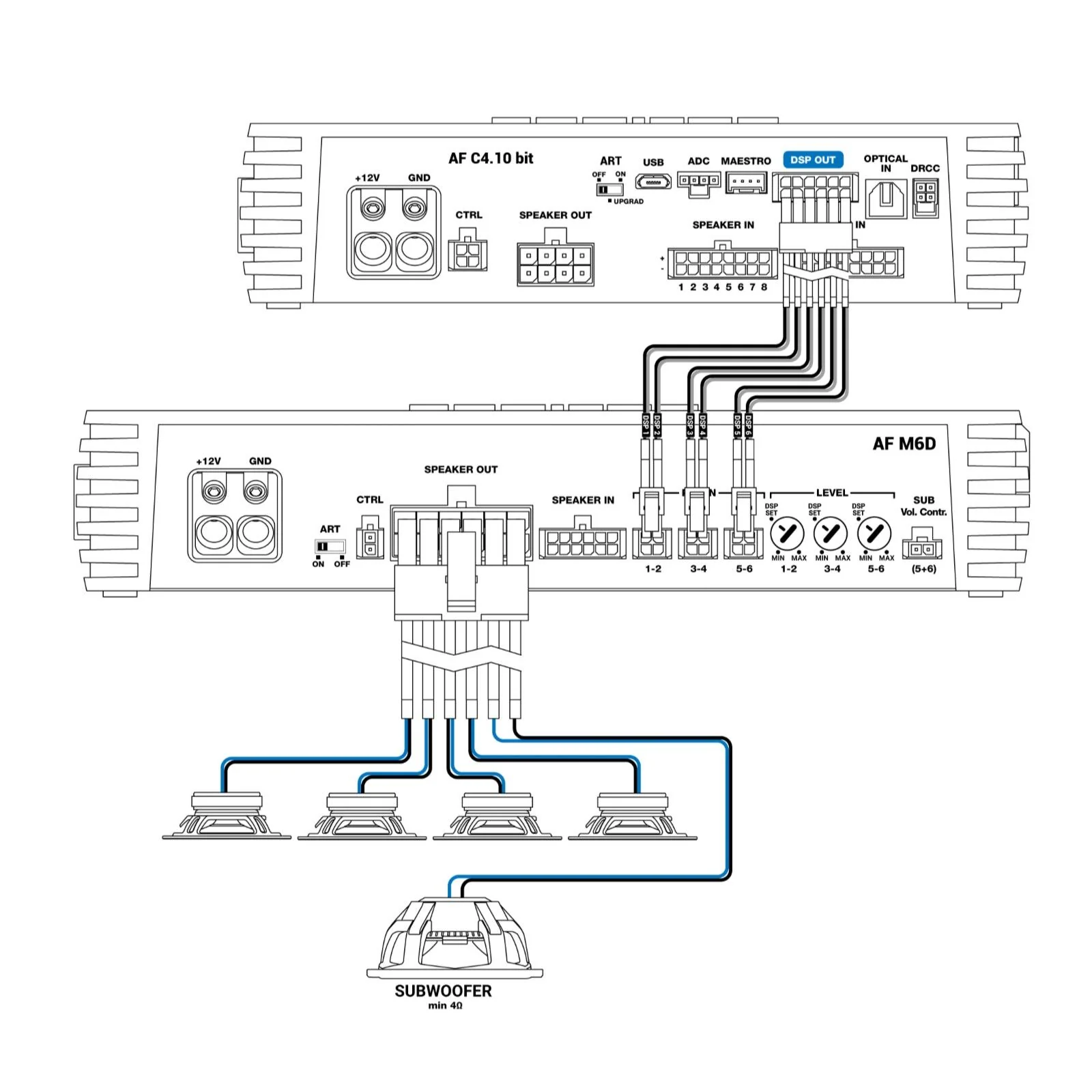

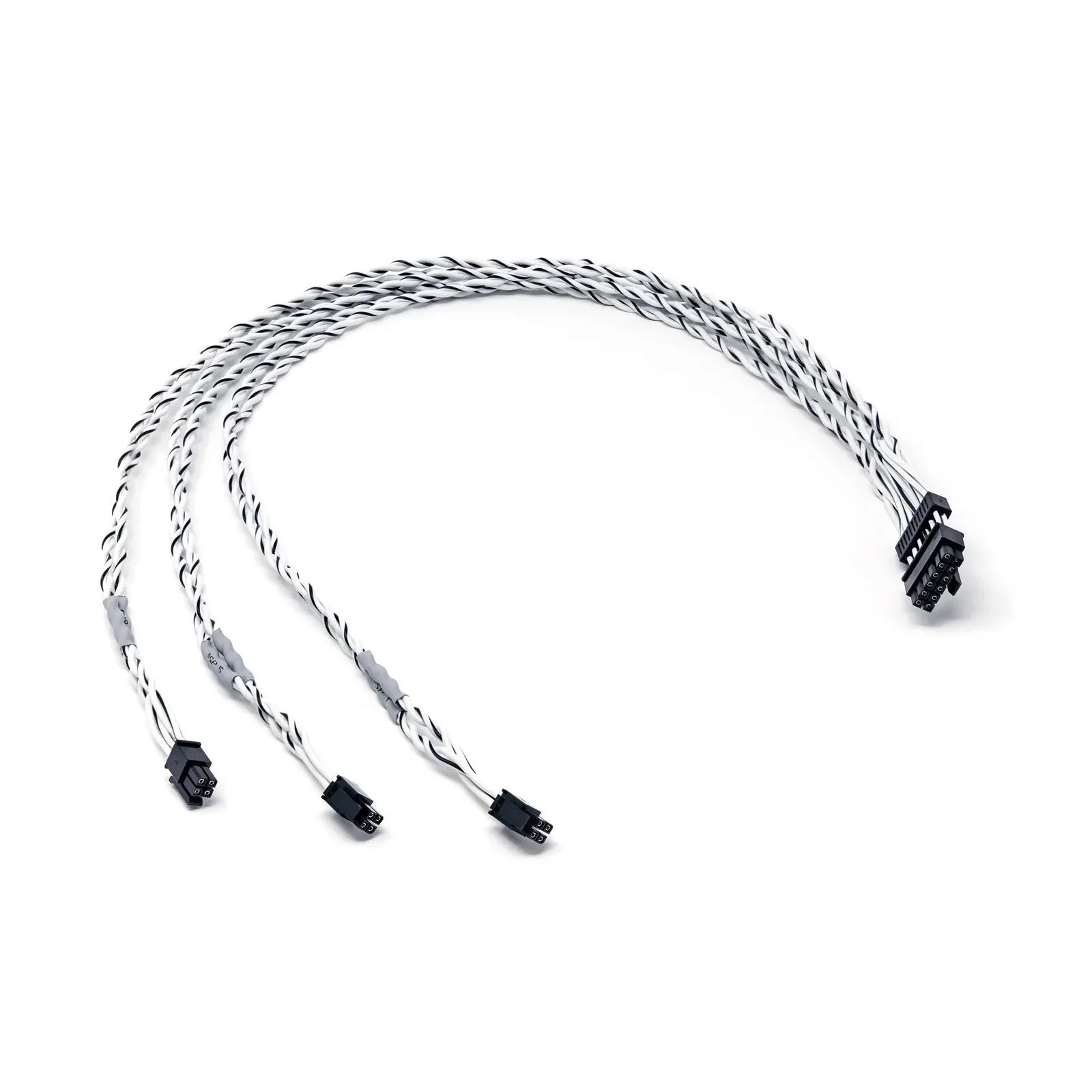

The Audison AF Link is an accessory cable to connect the DSP OUT outputs of the Audison AF bit amplifiers to the PRE IN inputs of the Audison AF D amplifiers.
The Audison AF amplifiers line bit features 6 DSP OUT outputs, which ca be connected to the same number of PRE IN inputs.
Note
The only exception is the AF M12.14 bit, which is equipped with the same connector DSP OUT connector, but only 2 of those outputs are available: DSP 5 and DSP 6 (in the AF M12.14 bit the outputs DSP 1 to DSP 4 replicate the same signal already applied to the amplified channels 9, 10, 11 and 12, therefore it is suggested to not use them simultaneously).
